2 Wire LED Display Indicator Loop Powered Digital Indicator LEDD-01A For LED Industry

Brand Name : SENSE

Model Number : LEDD-01A

Place of Origin : China

MOQ : 10PCS

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Name : 2 Wire LED Display Unit Loop Powered Digital Indicator LEDD-01A For LED Industry

Accuracy : 0.10%

Temperature drift : <30ppm

Resolution : 16-bit

Contact Now

LEDD Display Unit 2 Wire Loop Powered Display LEDD-01A Digital Indicator LEDD Industry 2 Wire Loop Power Display

Application
All transmitters with an output signal 4 to 20 mA and a DIN 43650 plug
Performance
  • 16 bit ADC MCU inside.
  • Two - wire working mode for 4-20mA.
  • The ultra-low operating voltage of 20mA is less than 3.0VDC.When 4mA is less than 2.5VDC power consumption.
  • Fully intelligent working mode.Supports user self - calibration and supports nonlinear correction of display values.
  • Highlight 0.36 inch LED display.
  • Standard Hirschmann appearance.
  • Extremely low temperature drift, suitable for -40~85 degree industrial environment.
We are specialized in providing high quality intelligent pressure measurement control products and solutions. Our company has
strong research and development strength, the series product quality is stable, the performance is outstanding and it has the very
strong anti-interference characteristic.
We are specialized in providing high quality intelligent pressure measurement control products and solutions. Our company has
strong research and development strength, the series product quality is stable, the performance is outstanding and it has the very
strong anti-interference characteristic.
No need external power supply, and the 4-20mA signals in the measured loop can be accurately displayed simply by
connecting them in series. Adopt imported special integrated circuit, SMT process manufacturing, high density of
circuit assembly, small size of instrument appearance. Its outstanding advantage is that its pressure drop compared
with similar products on the market is much lower.
Product lower pressure drop, stable display, high display brightness, solve the traditional LCD brightness and
temperature range of narrow shortcomings thoroughly.
Display
Display range -1.9.9.9.to9.9.9.9.
Accuracy 0.10%
Temperaturedrift <30ppm
Resolution 16-bit
Supply
Supply Notrequired,4to20mAlooppowered
Voltagedrop 4mA<2.5VDC;20mA<2.9VDC
Electrical protection inside the meter head with reverse polarity protection. The meter is not bright when the current is fed into the reverse connection, and the meter will not be damaged
Ambient temperatures
Storage -40 ~85℃
Materials
Displayhousing ABS
Others
Consumptioncurrent Max<60mA@4-20mA.
Weight Approx.65g
Ingressprotection IP65
Colorofhousing Black

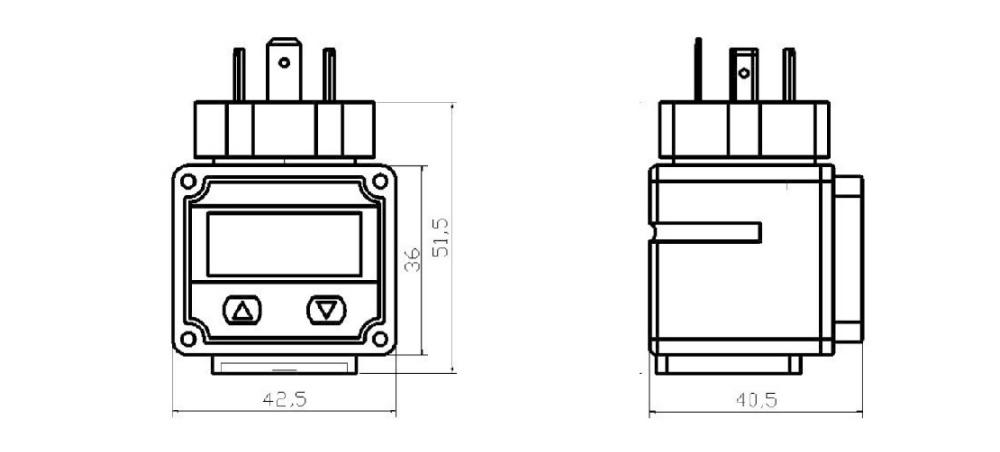

Dimensions(mm)
2 Wire LED Display Indicator Loop Powered Digital Indicator LEDD-01A For LED Industry

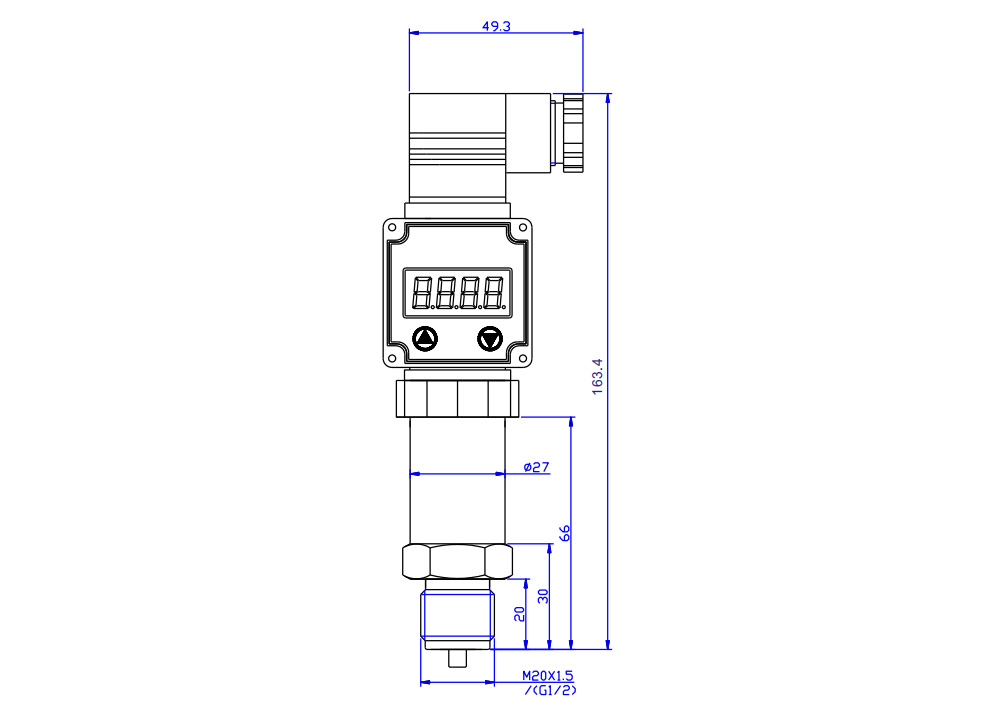

Example for usage with a SENSE pressure transmitter with connector DIN 43650 connector.
2 Wire LED Display Indicator Loop Powered Digital Indicator LEDD-01A For LED Industry
