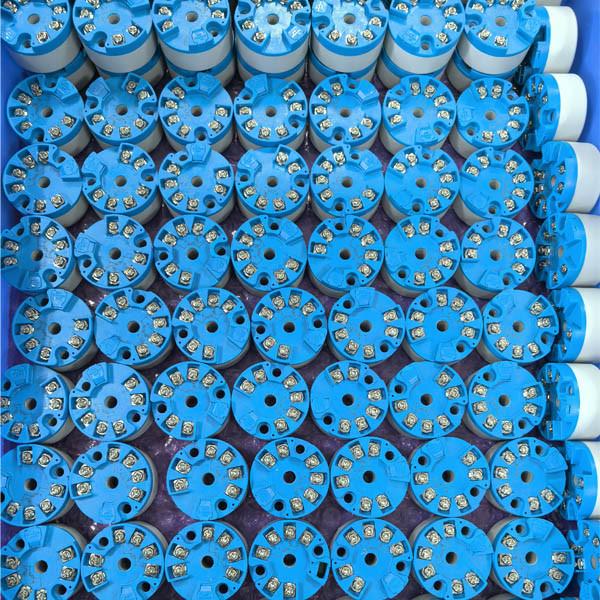

HART 7 Head Mounted Industrial Temperature Transmitter 2 Wire

  • 1
  • 2

Brand Name : SENSE

Model Number : TMT192C

Certification : HART

Place of Origin : Shanghai China

MOQ : 10PCS

Price : Negotiate

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Power Supply : 7.5 to 45V DC

Input : Universal input

Output : 4-20mA+HART 5 / 7

Isolation : 2000V AC Galvanic isolation

Mounting : Head mounted

Operating Temperature : -40 to +100 °C

Storage Temperature : -40 to +85 °C

Protection Rating : IP00

Weight : 90 g

Housing Material : Plastic

Dimensions : 112.5 x 12.6 x 99 mm

Signal Transmission : 2-wire

Response time : ≤ 1s

Accuracy : ±0.1% of span

Contact Now

2 Wire HART 7 Head Mounted Industrial Temperature Transmitter

  1. Free PC software (software can customize LOGO)

  2. Labels can be customized
  3. Provide DD file
  4. Packaging:Carton packing, 12PCS/ box
Application
  • Temperature measurement of a wide range of TC and RTD and mV and Ohm types.
  • Out put 4...20 mA+ HART
  • Integration into asset management schemes.
  • Critical applications requiring superior accuracy and/or sensor redundancy and drift detection.
Technical characteristics
  1. Single input transmitter.
  2. Lightning protection/surge protection/group pulse
  3. Through the HART protocol, use the manual operator or PC for configuration
  4. Resistance input value up to 2KΩ
  5. Wider voltage input range, -700~2000mV
  6. High precision, built-in cold end compensation
  7. Electrical isolation 2000V AC
  8. Linearized curve matching
  9. Support user multi-point nonlinear correction
Input Type Measurement Ranges Min.meas.ranges
Resistance thermonmeter(RTD) PT100 -200℃ to 850℃(-328℉ to 1562℉) 10K
Resistance thermonmeter(RTD) PT500

►-200℃ to 250℃(-328℉ to 482℉)

10K
Resistance thermonmeter(RTD) PT1000 -200℃ to 250℃(-328℉ to 482℉) 10K
Resistance thermonmeter(RTD) Cu50 ►-50℃ to 150℃(-58℉ to 302℉) 10K
Resistance thermonmeter(RTD) Cu100 ►-50℃ to 150℃(-58℉ to 302℉) 10K
Resistance thermonmeter(RTD) Ni100 ►-60℃ to 180℃(-76℉ to 356℉) 10K
Resistance thermonmeter(RTD) Ni500 ►-60℃ to 180℃(-76℉ to 356℉) 10K
Resistance thermonmeter(RTD) Ni1000 ►-60℃ to 150℃(-76℉ to 302℉) 10K
Resistance thermonmeter(RTD) Resistance(Ω) 0Ω to 400Ω 10Ω
Resistance thermonmeter(RTD) Resistance(Ω) 0Ω to 2000Ω 20Ω
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples
(TC)		 B(PtR30-PtRh6) 0℃ to 180℃(-32℉ to 3308℉) 500K
Thermocouples
(TC)		 E(NiCr-CuNi) -270℃ to 1000℃(-454℉ to 1832℉) 50K
Thermocouples
(TC)		 J(Fe-CuNi) -210℃ to 1200℃(-346℉ to 2192℉) 50K
Thermocouples
(TC)		 K(NiCr-Ni) -270℃ to 1372℃(-454℉ to 2501℉) 50K
Thermocouples
(TC)		 N(NiCrSi-NiSi) -270℃ to 1300℃(-346℉ to 2372℉) 50K
Thermocouples
(TC)		 R(PtRh13-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 S(PtRh10-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 T(Cu-CuNi) -270℃ to 400℃(-454℉ to 752℉) 50K
Voltage transmitters(mV) Millivolt transmitter(mV) -75mV to 75V 5mV
Voltage transmitters(mV) Millivolt transmitter(mV) -700mV to 200V 20mV
► ON Request

Ordering code

Certification
A
B		 Version for non hazardous areas
NEPSI Ex ia CT4
Configuration transmitter connection
A
1
2
3
4		 Standard factory configuration 3-wire
Configuration
Configuration
Configuration
Configuration		 connection TC
connection RTD(2-wire)
connection RTD(3-wire)
connection RTD(4-wire)
Configuration temperature sensor
A
1
2
3
4
5
6
7
8
B
E
J
K
N
R
S
T		 Standard factory configuration Pt100
Pt100-200℃ to 850℃(-328°Fto 1562°F)
Pt500-200℃ to 250℃(-328°F to 482"F)
Pt500-200℃ to 250℃(-328F to 482°F)
Pt1000-200℃ to 250℃(-328°F to 482°F)
Cu50 -50℃ to 150℃(-58°F to 302°F)
Cu100-50℃ to 150℃(-58°F to 302°F)
Ni100-60℃ to 180℃ (-76°Fto 356°F)
Ni500-60℃ to 180℃(-76°Fto 356°F)
Type B 0℃ to 1820℃(-32°F to 3308°F
Type E -270℃ to 1000℃(-454F to 1832°F)
Type J-210℃ to 1200℃(-346°Fto 2192°F)
Type K-270℃ to 1372℃(-454°F to 2501F)
Type N -270℃ to 1300℃(-454°F to 2372°F)
Type R -50℃ to 1768℃(-58°F to 3214.4°F)
Type S-50℃ to 1768℃(-58°Fto 3214.4°F)
Type T -270℃ to 400℃(-454°F to 752°F)
Configuration
A
B
C
D		 Standard factory configuration(Pt100/3-wire/0 to 100℃)
Customised measurement range
Customised expanded configuration for TC
Customised expanded configuration for RTD
TMT192C Order code(complete) For example:TMT192CA-AAAA

Dimensions
HART 7 Head Mounted Industrial Temperature Transmitter 2 Wire



How to programme

HART 7 Head Mounted Industrial Temperature Transmitter 2 Wire

Install

HART 7 Head Mounted Industrial Temperature Transmitter 2 Wire
