RTD TC input DIN Rail temperature transmitter TMT130A 4 to 20mA

  • 1
  • 2

Brand Name : SENSE

Model Number : TMT130A

Place of Origin : Shanghai China

MOQ : 10PCS

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Certification : CE

Power Supply : 7.5 to 45V DC

Input : Universal input

Output : 4-20mA

Isolation : 2000V AC Galvanic isolation

Mounting : DIN rail

Operating Temperature : -40 to +100 °C

Storage Temperature : -40 to +85 °C

Protection Rating : IP00

Weight : 90 g

Housing Material : Plastic

Dimensions : 112.5 x 12.6 x 99 mm

Signal Transmission : 2-wire

Response time : ≤ 1s

Accuracy : ±0.1% of span

Contact Now

4 to 20mA output universal input DIN Rail temperature transmitter TMT130A RTD TC PT100 2 wire 3wire

  1. DIN rail temperature transmitter TMT130A for resistance
  2. thermometers(RTD),thermocouples(TC), resistance and voltage
  3. transmitters,settable via HART-protocol
  4. High performance, high reliability
  5. Variety of sensor inputs
  6. Hart Digital communication
  7. ​Self-diagnostics function

SENSE INSTRUMENTS has been dedicated to the development and manufacturing of temperature transmitters for three decades. Our experienced research and development team ensures that all our products come with PC-side debugging software. We also offer customized software solutions tailored to our customers' needs, with OEM customization being one of our key strengths. Our HART temperature transmitters are equipped with DD files and support debugging with handheld communicators.

Performance
  • Temperature transmitter for converting various input signals into a scalable 4 to 20 mA analogue output signal

Input
  • Resistance thermometer (RTD)
  • Thermocouple (TC)
  • Resistance transmitter (Ω)
  • Voltage transmitter (mV)
Performance
  1. ​Universal settings for various input signals
  2. 2 wire technology, 4 to 20mA analogue output
  3. High accuracy in total ambient temperature range
  4. An internal temperature sensor for active temperature
  5. compensation(For T/C)
  6. Wide voltage supply range
  7. Customer speciϐic measurement range settings
  8. Expanded resistance input (max. 2KΩ)
  9. Expanded voltage input (max. 2KmV)
Input Type Measurement Ranges Min.meas.ranges
Resistance thermonmeter(RTD) PT100 -200℃ to 850℃(-328℉ to 1562℉) 10K
Resistance thermonmeter(RTD) PT500

►-200℃ to 250℃(-328℉ to 482℉)

10K
Resistance thermonmeter(RTD) PT1000 -200℃ to 250℃(-328℉ to 482℉) 10K
Resistance thermonmeter(RTD) Cu50 ►-50℃ to 150℃(-58℉ to 302℉) 10K
Resistance thermonmeter(RTD) Cu100 ►-50℃ to 150℃(-58℉ to 302℉) 10K
Resistance thermonmeter(RTD) Ni100 ►-60℃ to 180℃(-76℉ to 356℉) 10K
Resistance thermonmeter(RTD) Ni500 ►-60℃ to 180℃(-76℉ to 356℉) 10K
Resistance thermonmeter(RTD) Ni1000 ►-60℃ to 150℃(-76℉ to 302℉) 10K
Resistance thermonmeter(RTD) Resistance(Ω) 0Ω to 400Ω 10Ω
Resistance thermonmeter(RTD) Resistance(Ω) 0Ω to 2000Ω 20Ω
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples
(TC)		 B(PtR30-PtRh6) 0℃ to 180℃(-32℉ to 3308℉) 500K
Thermocouples
(TC)		 E(NiCr-CuNi) -270℃ to 1000℃(-454℉ to 1832℉) 50K
Thermocouples
(TC)		 J(Fe-CuNi) -210℃ to 1200℃(-346℉ to 2192℉) 50K
Thermocouples
(TC)		 K(NiCr-Ni) -270℃ to 1372℃(-454℉ to 2501℉) 50K
Thermocouples
(TC)		 N(NiCrSi-NiSi) -270℃ to 1300℃(-346℉ to 2372℉) 50K
Thermocouples
(TC)		 R(PtRh13-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 S(PtRh10-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 T(Cu-CuNi) -270℃ to 400℃(-454℉ to 752℉) 50K
Voltage transmitters(mV) Millivolt transmitter(mV) -75mV to 75V 5mV
Voltage transmitters(mV) Millivolt transmitter(mV) -700mV to 200V 20mV
► ON Request

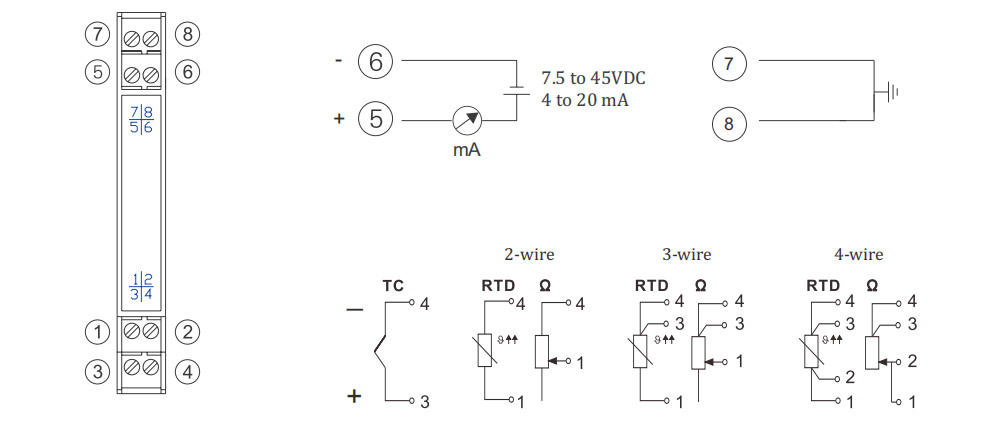

Electrical connections

RTD TC input DIN Rail temperature transmitter TMT130A 4 to 20mA

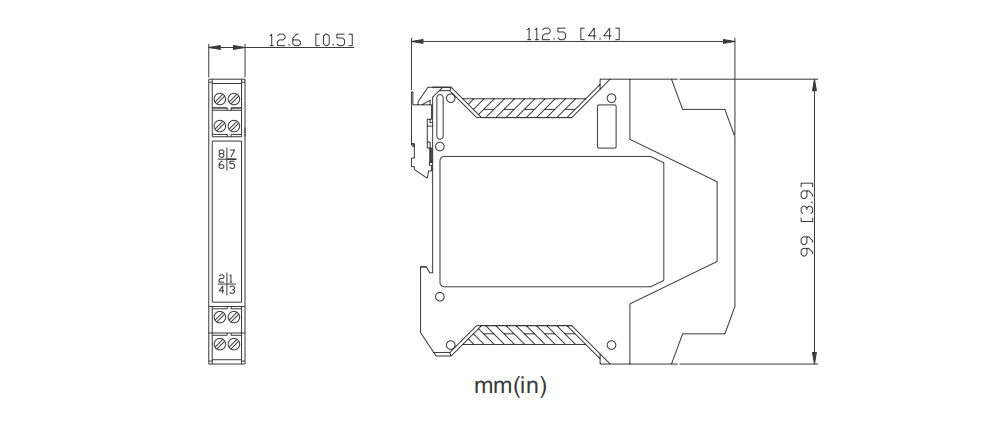

Dimensions

RTD TC input DIN Rail temperature transmitter TMT130A 4 to 20mA

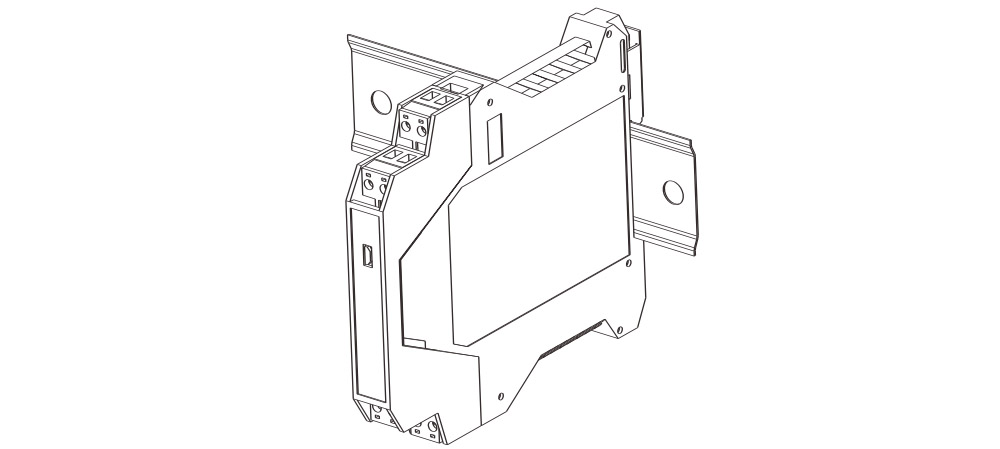

Installation diagram

RTD TC input DIN Rail temperature transmitter TMT130A 4 to 20mA

Ordering code

Certification
A
B		 Version for non hazardous areas
NEPSI Ex ia CT4
Configuration transmitter connection
A
1
2
3
4		 Standard factory configuration 3-wire
Configuration
Configuration
Configuration
Configuration		 connection TC
connection RTD(2-wire)
connection RTD(3-wire)
connection RTD(4-wire)
Configuration temperature sensor
A
1
2
3
4
5
6
7
8
B
E
J
K
N
R
S
T		 Standard factory configuration Pt100
Pt100-200℃ to 850℃(-328°Fto 1562°F)
Pt500-200℃ to 250℃(-328°F to 482"F)
Pt500-200℃ to 250℃(-328F to 482°F)
Pt1000-200℃ to 250℃(-328°F to 482°F)
Cu50 -50℃ to 150℃(-58°F to 302°F)
Cu100-50℃ to 150℃(-58°F to 302°F)
Ni100-60℃ to 180℃ (-76°Fto 356°F)
Ni500-60℃ to 180℃(-76°Fto 356°F)
Type B 0℃ to 1820℃(-32°F to 3308°F
Type E -270℃ to 1000℃(-454F to 1832°F)
Type J-210℃ to 1200℃(-346°Fto 2192°F)
Type K-270℃ to 1372℃(-454°F to 2501F)
Type N -270℃ to 1300℃(-454°F to 2372°F)
Type R -50℃ to 1768℃(-58°F to 3214.4°F)
Type S-50℃ to 1768℃(-58°Fto 3214.4°F)
Type T -270℃ to 400℃(-454°F to 752°F)
Configuration
A
B
C
D		 Standard factory configuration(Pt100/3-wire/0 to 100℃)
Customised measurement range
Customised expanded configuration for TC
Customised expanded configuration for RTD
TMT130A Order code(complete) For example:TMT130A-AAAA
