Endress Hauser Pressure Sensor Element For Pressure Level Transmitter

Brand Name : Endress+Hauser

Model Number : USC70

Place of Origin : Germany

MOQ : 10

Price : USD/CNY

Payment Terms : T/T

Certification : ROHS

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Outside Diameter : 32.4 mm

Measuring Ranges : 0 to 100 mbar and up to 40 bar

Name : Endress Hauser Pressure Sensor Element For Pressure Level Transmitter

Contact Now

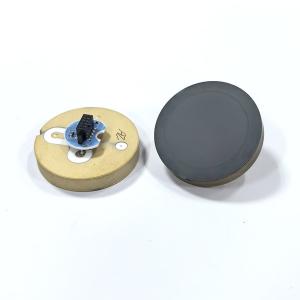

Pressure Sensor Element for pressure transmitter level transmitter

Proven a million times over: Our capacitive ceramic measuring cell with an outer diameter of 32.4 mm
As the heart of pressure gauges, the Ceracore capacitive ceramic measuring cell guarantees cost-efficient, reliable, and safe process control in millions of Endress+Hauser pressure gauges and customer-specific applications. The Ceracore measuring cell offers outstanding performance, flexible adaptations to your application, and application-specific configuration for safe measurements and an exceptional level of stability.

Specifications:

  • Outside Diameter: 32.4 mm
  • Measuring Ranges: Standardized from 0 to 100 mbar and up to 40 bar
  • Connection Technology: Features a patented metallic solder connection between the sensor base and membrane
  • Construction: The sensor base element has a metallic coating that enhances EMC compatibility and minimizes installation sensitivity
  • Material: Made from high-purity ceramic (99.9% Al2O3), offering excellent resistance to various process media and being chemically inert
  • Design: Operates as a dry measuring cell without oil for pressure transmission, making it vacuum-resistant
  • Durability: High overload resistance ensures reliability
  • Output Characteristics: Provides a linearized and temperature-compensated output

Communication Interfaces:

  • Analog Output:
    • Ratiometric
    • Absolute
  • Digital Output:
    • SPI
    • UART
  • Output Flexibility: Digital and analog signals can be combined
  • Additional Outputs:
    • Switching output
    • Temperature output
  • Custom Configuration: Configurable for specific applications

Sensor Configuration:

  • Factory Settings: Pre-configured for damping, turn-down, and measuring range
  • Adjustable Measuring Rate: Optimizes resolution and power consumption
  • User Configuration: Possible on the customer’s side
  • Dual Output Capability: Can provide both pressure and temperature signals
  • Power Efficiency: Consumes less than 1.6 mA

Safety Features:

  • Self-Monitoring: Ensures maximum safety of the measuring cell
  • Secure Communication: Utilizes secure protocols for data transmission
  • Certifications: Approved for ATEX, RoHS compliant, and uses FDA-listed materials

FAQ:

Here are some frequently asked questions about the Endress+Hauser pressure sensor:

Q: What is the brand name of this pressure sensor?

A: The brand name of this pressure sensor is Endress+Hauser.

Q: What is the model number of this pressure sensor?

A: The model number of this pressure sensor is USC70

Q: Where is this pressure sensor made?

A: This pressure sensor is made in Germany.

Q: What is the minimum order quantity for this pressure sensor?

A: The minimum order quantity for this pressure sensor is 10.

Q: What is the price of this pressure sensor?

A: The price of this pressure sensor is USD/CNY.

Q: What are the payment terms for this pressure sensor?

A: The payment terms for this pressure sensor is T/T.

Q: Is this pressure sensor certified?

A: Yes, this pressure sensor is ROHS certified.

Q: What is the supply ability for this pressure sensor?

A: The supply ability for this pressure sensor is 10000PCS / Month.

Q: What is the delivery time for this pressure sensor?

A: The delivery time for this pressure sensor is 5-8 workdays.

Q: How is this pressure sensor packaged?

A: This pressure sensor is packaged in carton packing.
